MITSUBISHI Jumpering

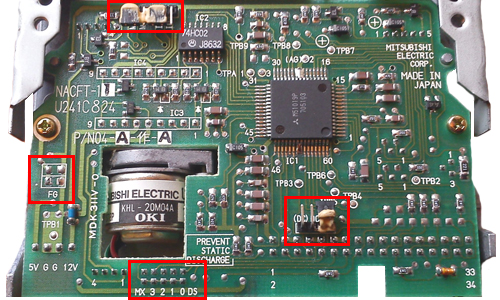

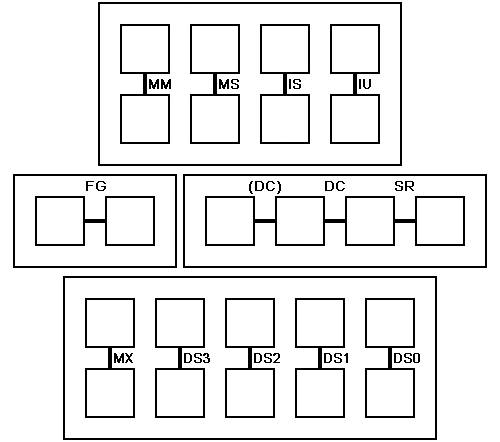

MF353B MITSUBISHI drives




 IU

 Front LED controlled by the Ready signal

 IS

 Front LED controlled by the Drive Select signal

 MS

 Drive Select controls motor on

 MM

 Motor ON controls motor on

 SR

 Ready output on Pin 34

 DC

 Disk Change output on Pin 34

 (DC)

 Disk Change output on Pin 2

 FG

 Short between FDD frame and DC 0V

 DS0

 Drive select 0

 DS1

 Drive select 1

 DS2

 Drive select 2

 DS3

 Drive select 3

 MX

 Multiplex Drive Select

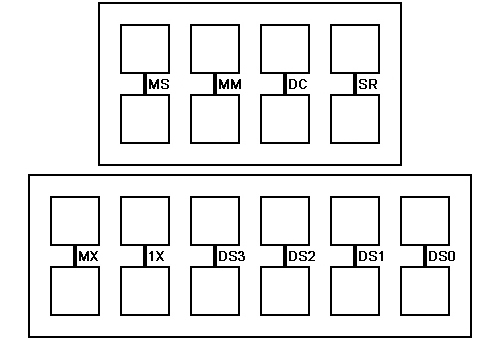

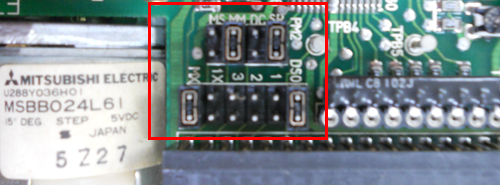

MF353 MITSUBISHI drives




 SR

 Ready output on Pin 34

 DC

 Disk Change output on Pin 34

 MM

 Motor ON controls motor on

 MS

 Drive Select controls motor on

 DS0

 Drive select 0

 DS1

 Drive select 1

 DS2

 Drive select 2

 DS3

 Drive select 3

 1X



 MX

 Multiplex Drive Select

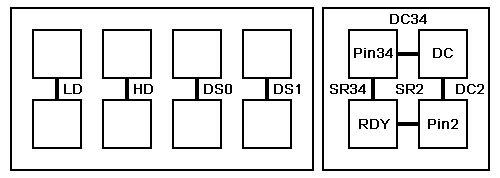

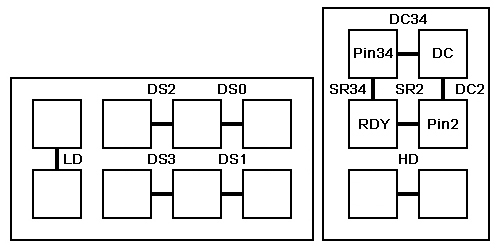

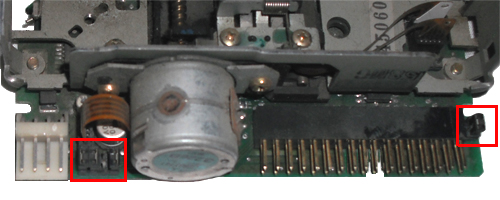

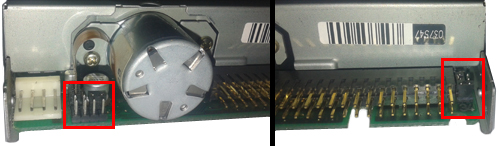

MF355 MITSUBISHI drives






 LD+HD

 Automatic Density control

 LD

 Low Density input: HI=2M, LO=1M

 HD

 High Density input: HI=1M, LO=2M

 DS0

 Drive select 0

 DS1

 Drive select 1

 DS2

 Drive select 2

 DS3

 Drive select 3

 SR34

 Ready output on Pin 34

 DC34

 Disk Change output on Pin 34

 SR2

 Ready output on Pin 2

 DC2

 Disk Change output on Pin 2
