MITSUMI Jumpering

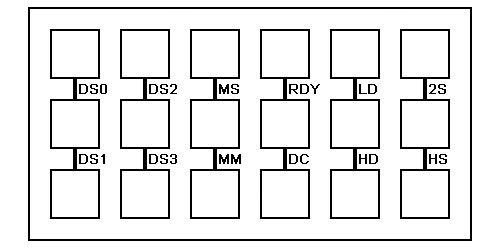

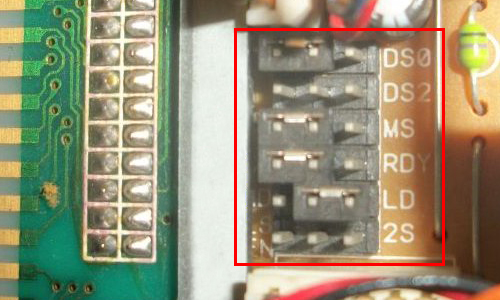

D509V MITSUMI drives




 DS0

 Drive select 0

 DS1

 Drive select 1

 DS2

 Drive select 2

 DS3

 Drive select 3

 MS

 Drive Select controls motor on

 MM

 Motor ON controls motor on

 RDY

 Ready output on Pin 34

 DC

 Disk Change output on Pin 34

 LD

 Low Density output

 HD

 High Density output

 2S

 Dual speed (300 rpm/360 rpm)

 HS

 High speed (360 rpm)

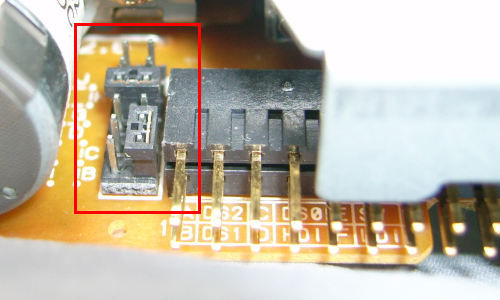

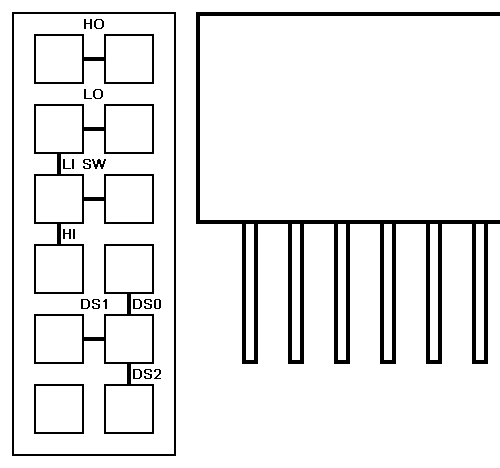

D359T3 MITSUMI drives




 DS0

 Drive select 0

 DS1

 Drive select 1

 DS2

 Drive select 2

 HI

 High Density input

 LI

 Low Density input

 SW

 Shift from Normal Density to High Density through disk insertion

 LO

 Low Density output

 HO

 High Density output
